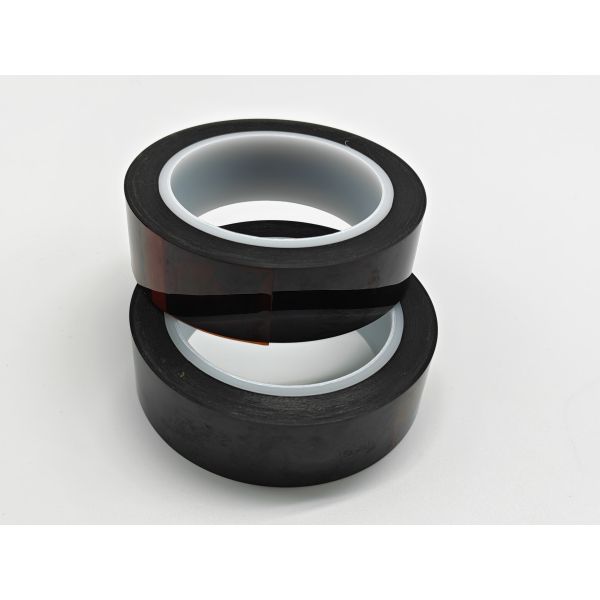

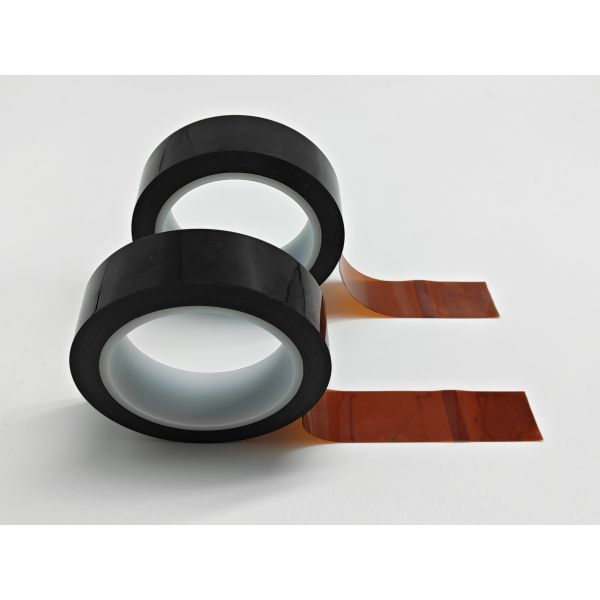

175um Heat Resistant Kapton Tape
Description
KX12550 is a 175μm high-temperature gold finger Kapton tape with silicone adhesive. It offers 260°C heat resistance, strong adhesion, chemical resistance, and residue-free peeling, ideal for electronic insulation and high-temperature protection.
Applications
- Magnet wire and cable wrapping insulation
- Motor and electrical appliance slot insulation
- High-temperature and solder mask protection for PCBs
- Mobile phone lithium battery bundling and fixation
- High-temperature electronic component thermal shielding
- Chemical-resistant masking for industrial processes
Stucture
| No |
Layer&Material |
Remarks |
| 1 |
Stucture
|
PI(Kapton) |
Polymide Film |
| 2 |
Adhesive |
Silicone |
Physical Parameters
| Item |
Specification |
Standard |
| Total Thickness |
175±10μm |
GB/T7125-2014 |
| Adhesive Thickness |
50±5μm |
GB/T7125-2014 |
| Peel Strength |
700g↑/25.4mm (180°) |
GB/T2792-2014 |
| Temperature Resistance |
260°C/30mins |
Oven Test |
| Structure |
Polyimide (PI/Kapton) + Silicone Adhesive |
- |
| Test Conditions |
23±1℃, 50±5%RH, steel plate, 300mm/min |
- |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
FAQ
- What is the substrate material of this tape?
It uses polyimide (PI/Kapton) film as the base material with silicone adhesive.
- What is the maximum temperature resistance?
It can withstand 260°C for 30 minutes, suitable for extreme high-temperature processes.
- Does it have chemical resistance?
Yes, it is alcohol-resistant, acid-resistant, and alkali-resistant, ideal for harsh industrial environments.
- What is the adhesion strength?
The adhesion strength is subject to actual measurement, ensuring reliable bonding performance.
- Is it suitable for battery applications?
Yes, it is widely used for bundling and insulating mobile phone lithium batteries.
- Does it leave residue after peeling?
No, it can be repeatedly peeled without leaving residue on the surface.
